Home > Our Products > IVC-S300

IVD Diagnostic

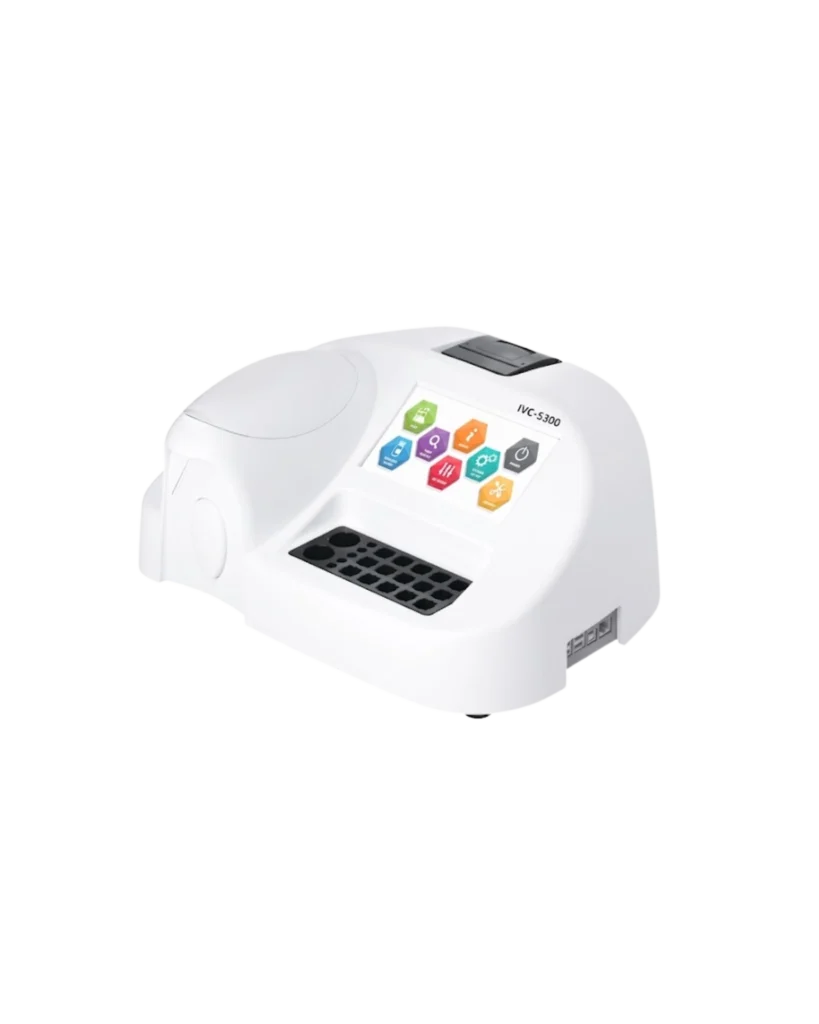

Semi-Auto Chemistry Analyzer

IVC-S300

  • ARM Cortex-A8，800MHz
  • Temperature: 10℃~30℃, Humidity: 30%~80%.
  • 420*340*202mm (L *W*H )
  • 7.0” TFT LCD with touch screen, 800*480 pixels
Contact Us
View Specifications

Technical Specification

Test Method 1 point end, 2 point end (Sample blank), Kinetics, Fixed-time, Coagulation (optional)
Optics 7 standard filters: 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm.
2 additional filters optional.
Lamp House Long-life tungsten halogen lamp (6V/10W) with auto-sleep function.
Display 7.0" TFT LCD touch screen, 800 × 480 pixels.
Printer Built-in thermal printer, 57mm printer paper.
Temperature 25°C, 30°C, 37°C and Room Temperature, controlled by Peltier elements.
Flow Cell Capacity & Optical Path 32μL, 10mm.
Resolution 0.0001 Abs.
Photometric Range 0.0000 – 4.0000 Abs.
CPU ARM Cortex-A8, 800MHz.
Memory (Storage)
  • 4 GB Storage
  • Over 300 programs
  • Stores up to 200,000 test results
Interface
  • 4 × USB Host ports
  • 1 × USB Slave port
  • 1 × Ethernet port
  • USB Host supports keyboard, mouse, printer, U disk, barcode reader, etc.
  • USB Slave supports PC connection and PC software control function.
Operational Environment
  • Temperature: 10°C – 30°C
  • Humidity: 30% – 80%
Power Requirement Wide power supply AC 100–240V, 50/60Hz.
Dimensions 420 × 340 × 202 mm (L × W × H)
Weight 4.45 kg

Get a Quote

Contact our team for pricing and availability of the IVC-S300.

Request Quote
