44 reaction cuvettes Reaction volume as low as 150 μl Stable & accurate temperature(37±0.1℃) for reaction

IVD Diagnostic

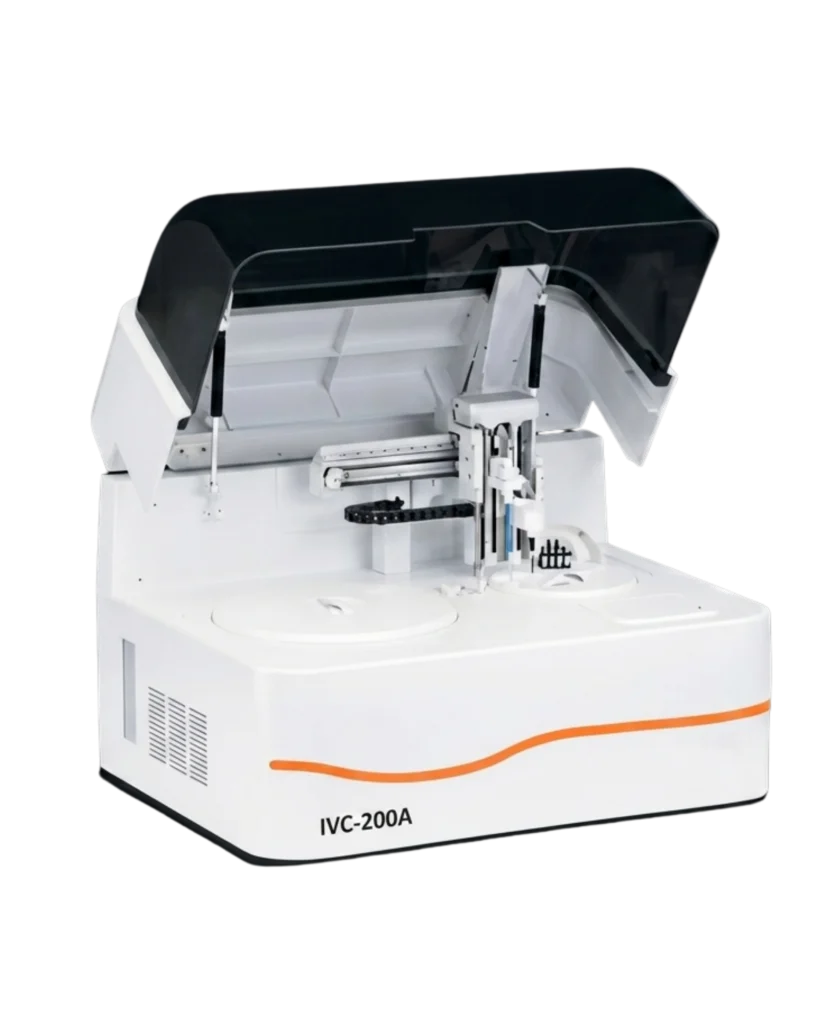

Auto Chemistry Analyzer

IVC-200A

Constant speed 200 tests/ hour
Independent probe
Independent stirrer
Reagent tray contains 80 reagent positions
Sample tray contains 40 sample positions
The reaction tray is single circle, with a total of 44 semi-permanent plastic cuvettes
4-stage, 2 times automatic washing system

compatibility

200 Tests/Hour, Double Reagent

Management of reagents, serum index, whole process de tection, linear expansion of enzyme, blank deduction,dirty cuvette memory , cross infection prevention, patient info- rmation memory and association input, automatic report audit, data fuzzy query, report statistics and printing, reference range grading, alarm information classification, user operation privilege classification management.

Dedicated sampling probe equipped with sensitive liquid sensor, timely feedback of reagent & sample residuals

Technical Specification

Machine Type	Random access, open reagent & locked reagent (optional)
Test Speed	Constant 200 tests/hour (Mono reagent or double reagent)
Test Principle	Colorimetric method, turbidimetry
Test Method	1 point end, 2 point end, Fixed-Time, Kinetics
Calibration Type	Linear & Nonlinear
Mixing System	Mixer paddle-type mixing, effectively reducing carry-over.
Light Source	Halogen lamp
Wavelength	340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm, 700nm (4 additional options)
Absorbance Range	0 – 4.0 Abs
Resolution	0.0001 Abs
Operating System	Windows XP, Windows 7, Windows 8, Windows 10
Data Processing	Automatic calibration Test combination Effective reagent management Serum index Whole process detection Linear enzyme expansion Blank deduction Dirty cuvette memory Cross infection prevention Patient information memory and association input Automatic report audit Data fuzzy query Report statistics and printing Reference range grading Alarm information classification User privilege classification management
Report Printing	6 report formats optional, supports custom report template.
Interface	TCP/IP Network Interface
Power Supply	AC 110/220V ±10%, 50/60Hz, 1000VA
Water Consumption	8 L/hour (Maximum)
Dimensions	≤745 × 540 × 530 mm (L × W × H)
Weight	≤80 kg
Sample Tray	40 sample positions
Sample Tube	Micro cup, test tube and blood collection tube can be used (Φ12–13 mm × 25–100 mm)
Sample Volume	2–30 μL (0.1 μL step)
Sample Probe	Liquid surface detection, automatic liquid level tracking and collision avoidance.
Sample Barcode	Sample barcode reader (Optional)
Reagent Tray	80 reagent positions (40 for R1 & 40 for R2), non-stop cooling system with Peltier pad, 24-hour cooling at 2℃–14℃, open reagent system.
Reagent Volume	20–300 μL (1 μL step)
Reagent Needle	Liquid surface detection, automatic liquid level tracking and collision avoidance.
Reagent Barcode	Reagent barcode reader (Optional)
Reaction Tray	Single-circle reaction tray with 44 semi-permanent plastic cuvettes.
Reaction Volume	150–330 μL
Reaction Time	10 minutes
Reaction Temperature	Peltier pad incubation system, 37℃ ±0.1℃

Fully-Auto Chemistry Reagents

Auto Chemistry Reagents
SN	Name	Full Name and Method	Pack Size (ml)	Unit	Total Volume (ml)
1	ALT	Alanine Aminotransferase (ALT) Assay Kit (L-alanine Substrate Method)	R1: 40ml×4 R2: 10ml×4	box	200
2	AST	Aspartate Aminotransferase (AST) Assay Kit (Aspartate Substrate Method)	R1: 40ml×4 R2: 10ml×4	box	200
3	ALP	Alkaline Phosphatase (ALP) Assay Kit (NPP Substrate-AMP Buffer Method)	R1: 40ml×4 R2: 10ml×4	box	200
4	GGT	γ-Glutamyltransferase (GGT) Assay Kit (GCANA Substrate Method)	R1: 40ml×4 R2: 10ml×4	box	200
5	TBIL	Total Bilirubin (TBIL) Assay Kit (Vanadate Oxidation Method)	R1: 40ml×4 R2: 10ml×4	box	200
6	DBIL	Direct Bilirubin (DBIL) Assay Kit (Vanadate Oxidation Method)	R1: 40ml×4 R2: 10ml×4	box	200
7	TP	Total Protein (TP) Assay Kit (Biuret Method)	R: 40ml×4	box	160
8	ALB	Albumin (ALB) Assay Kit (Bromocresol Green Method)	R: 40ml×4	box	160
9	ADA	Adenosine Deaminase (ADA) Assay Kit (Peroxidase Method)	R1: 40ml×2 R2: 10ml×2 （Calibrator:1ml×1,Control Level 1:1ml×1）	box	100
10	TBA	Total Bile Acid (TBA) Assay Kit (Enzymatic Cycling Method)	R1: 40ml×2 R2: 10ml×2	box	100
11	PA	Prealbumin (PA) Assay Kit (Immunoturbidimetric Method)	R1: 30ml×2 R2: 10ml×2	box	80
12	LAP	Leucine Aminopeptidase (LAP) Assay Kit (L-Leucine-p-nitroaniline Substrate Method)	R: 40ml×2	box	80
13	GLU-H	Glucose (GLU-H) Assay Kit (Hexokinase Method)	R1: 40ml×4 R2: 10ml×4	box	200
14	FMN	Fructosamine (FMN) Assay Kit (Nitrotetrazolium Blue Method)	R: 40ml×2 （Calibrator:1ml×1,Control Level 1:1ml×1）	box	80
15	UREA	Urea (UREA) Assay Kit (Urease-Glutamate Dehydrogenase Method)	R1: 40ml×4 R2: 10ml×4	box	200
16	CREA-E	Creatinine (CREA-E) Assay Kit (Sarcosine Oxidase Method)	R1: 40ml×4 R2: 10ml×4	box	200
17	UA	Uric Acid (UA) Assay Kit (Uricase Method)	R1: 40ml×4 R2: 10ml×4	box	200
18	Cys-C	Cystatin C (Cys-C) Assay Kit (Latex-enhenced Immunoturbidimetric Method)	R1: 30ml×2 R2: 10ml×2	box	80
19	RBP	Retinol-Binding Protein (RBP) Assay Kit (Latex-enhenced Immunoturbidimetric Method)	R1: 30ml×2 R2: 10ml×2	box	80
20	UMA	Urine Microalbumin (UMA) Assay Kit (Immunoturbidimetric Method)	R1: 30ml×2 R2: 10ml×2	box	80
21	B2M	β2-microglobulin (B2M) Assay Kit (Latex-enhenced Immunoturbidimetric Method)	R1: 30ml×2 R2: 10ml×2	box	80
22	α-AMY	α-Amylase (α-AMY) Assay Kit (CNPG2 Substrate Method)	R: 40ml×4	box	160
23	TG	Triglycerides (TG) Assay Kit (GPO-PAP Method)	R1: 40ml×4 R2: 10ml×4	box	200
24	CHO	Total Cholesterol (CHO) Assay Kit (CHOD-PAP Method)	R1: 40ml×4 R2: 10ml×4	box	200
25	LDL-C	Low Density Lipoprotein Cholesterol (LDL-C) Assay Kit (Direct Method-Sufactant Clearence Method)	R1: 40ml×4 R2: 10ml×4	box	200
26	HDL-C	High Density Lipoprotein Cholesterol (HDL-C) Assay Kit (Direct Method-Select Inhibition Method)	R1: 40ml×4 R2: 10ml×4	box	200
27	ApoA-I	Apolipoprotein A-I (ApoA-I) Assay Kit (Immunoturbidimetric Method)	R1: 30ml×4 R2: 10ml×4	box	160
28	ApoB	Apolipoprotein B (ApoB) Assay Kit (Immunoturbidimetric Method)	R1: 30ml×4 R2: 10ml×4	box	160
29	Lpa	Lipoprotein (a) (Lpa) Assay Kit (Immunoturbidimetric Method)	R1: 30ml×2 R2: 10ml×2	box	80
30	NEFA	Non-Esterified Fatty Acid (NEFA) Assay Kit (ACS-ACOD Method)	R1: 30ml×2 R2: 10ml×2 （Calibrator:1ml×1,Control Level 1:1ml×1）	box	80
31	CK	Creatine Kinase (CK) Assay Kit (Phosphocreatine Substrate Method)	R1: 40ml×4 R2: 10ml×4	box	200
32	LDH	Lactate Dehydrogenase (LDH) Assay Kit (Lactate Substrate Method)	R1: 40ml×4 R2: 10ml×4	box	200
33	α-HBDH	α-Hydroxybutyrate Dehydrogenase (α-HBDH) Assay Kit (α-Ketobutyric Acid Substrate Method)	R1: 40ml×4 R2: 10ml×4	box	200
34	HCY	Homocysteine (HCY) Assay Kit (Enzymatic Cycling Method)	R1: 40ml×2 R2: 10ml×2 （Calibrator:1ml×1, Control Level 1:1ml×1,Level 2:1ml×1)	box	100
35	ASO	Antistreptolysin O (ASO) Assay Kit (Latex-enhenced Immunoturbidimetric Method)	R1: 40ml×2 R2: 10ml×2	box	100
36	RF	Rheumatoid Factor (RF) Assay Kit (Latex-enhenced Immunoturbidimetric Method)	R1: 40ml×2 R2: 10ml×2 （Calibrator:1ml×1,Control Level 1:1ml×1）	box	100
37	CRP	C-reactive Protein (CRP) Assay Kit (Latex-enhenced Immunoturbidimetric Method)	R1: 30ml×2 R2: 10ml×2	box	80
38	hs-CRP	High Sensitive C-reactive Protein (hs-CRP) Assay Kit (Latex-enhenced Immunoturbidimetric Method)	R1: 30ml×2 R2: 10ml×2	box	80
39	IgA	Immunoglobulin A (IgA) Assay Kit (Immunoturbidimetric Method)	R1: 30ml×4 R2: 10ml×4	box	160
40	IgG	Immunoglobulin G (IgG) Assay Kit (Immunoturbidimetric Method)	R1: 30ml×4 R2: 10ml×4 （Calibrator:1ml×1）	box	160
41	IgM	Immunoglobulin M (IgM) Assay Kit (Immunoturbidimetric Method)	R1: 30ml×4 R2: 10ml×4 （Calibrator:1ml×1）	box	160
42	Ca	Calcium (Ca) Assay Kit (Arsenazo III Method)	R: 40ml×4	box	160
43	CO2	Bicarbonate (CO2) Assay Kit (PEPC Enzymatic Method)	R: 40ml×4	box	160
44	Mg	Magnesium (Mg) Assay Kit (Xylidyl Blue Method)	R: 40ml×4	box	160
45	Fe	Iron (Fe) Assay Kit (Ferrozine Method)	R1: 40ml×2 R2: 10ml×2	box	100
46	P	Inorganic Phosphorus (P) Assay Kit (Phosphomolybdate Method)	R: 40ml×4	box	160

Consumables
SN	Item	Pack Size	Unit	Qty
1	Calibration Serum Level 2（CAL 2）	5*20ml	box	100
2	Human Assayed Multi-Sera	5*20ml	box	100
3	Cuvette for IVC 120	Pack of 10	Pack	1
4	Cuvette for IVC 200	Pack of 100	Pack	1
5	R1 Bottle	Pack of 100	Pack	1
6	R2 Bottle	Pack of 100	Pack	1
7	Lamp	—	Pcs	1
8	Sample Cup	Pack of 200	Pack	1
9	Washing Solution	Pack of 500 ML	Pack	1
10	Sample Probe	—	Pcs	1
11	Reagent Probe	—	Pcs	1
12	Washing Needle	—	Pcs	1
13	Sample Needle	—	Pcs	1

Key Features

Multifunctional precision sampling probe

External & internal mirror polish, external & internal probe washing
Dedicated sampling probe equipped with sensitive liquid sensor, timely feedback
of reagent & sample residuals
Collision protection, automatic probe depth adjusting

Excellent mixer design

Teflon coating mixer. No water dropping (reducing carry-over)
Excellent mixing effect with standard mixing procedure

High precision ceramic syringe

Permanent ceramic piston
Accurate dispensing as low as 0.1 μl

Reagent & sample tray

80 reagent positions
40 sample positions
Non-stop cooling system with peltier pad inside, 24 hours 2℃-14℃
Bar code reader(optional)

Reaction tray

44 reaction cuvettes
Reaction volume as low as 150 μl
Stable & accurate temperature(37±0.1℃) for reaction

Advanced operating system

User friendly software interface simple, easy-to-operation
Sample automatic dilution(decrease, increase, normal)
Reaction result automatic checking and warning, calibration result automatic
checking, warning alarm log
Linear & nonlinear calibration,Multi-points calibration up to 8 points
Quality control apply to westgard, L-T plot, cumulative
